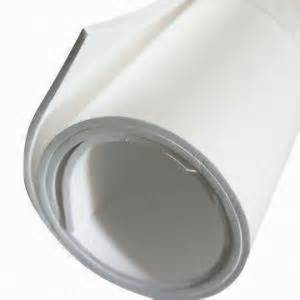

In the demanding world of industrial sealing and advanced filtration, material selection is paramount. For engineers and procurement specialists seeking a reliable, high-performance solution, Expanded PTFE Sheet stands as a benchmark material. At Kaxite Sealing, we specialize in manufacturing premium-grade ePTFE sheets that deliver exceptional performance in the most challenging environments. This versatile polymer, born from the unique expansion of polytetrafluoroethylene (PTFE), offers an unparalleled combination of chemical resistance, thermal stability, and mechanical properties. Unlike traditional PTFE, the expansion process creates a microporous structure that imbues the material with unique characteristics, making it indispensable across a wide spectrum of industries, from pharmaceutical and food processing to chemical manufacturing and aerospace.
The core advantage of Kaxite Sealing's Expanded PTFE Sheet lies in its engineered microstructure. The expansion process aligns PTFE particles into a strong, fibrous network, creating a matrix filled with microscopic pores. This structure is the source of its remarkable properties: it becomes highly compressible and conformable for excellent sealing, while remaining chemically inert like solid PTFE. Furthermore, this porous nature can be tailored to achieve specific performance goals, such as breathability for filtration or controlled permeability for specialized applications. Our commitment at Kaxite Sealing is to provide not just a material, but a engineered solution that meets precise technical specifications.
To ensure you select the perfect material for your application, Kaxite Sealing offers a range of Expanded PTFE Sheet grades. The following tables detail our standard product specifications. Custom formulations are available upon request to meet unique requirements for density, thickness, or additive inclusion.
| Property | Test Method | Standard Grade | High-Density Grade | Colorable Grade |
|---|---|---|---|---|
| Density | ASTM D792 | 0.6 - 0.8 g/cm³ | 1.0 - 1.2 g/cm³ | 0.7 - 0.9 g/cm³ |
| Tensile Strength (MD) | ASTM D638 | 15.0 MPa (min) | 25.0 MPa (min) | 18.0 MPa (min) |
| Elongation at Break (MD) | ASTM D638 | 100% (min) | 80% (min) | 90% (min) |
| Compression Stress @ 25% Strain | ASTM D575 | 4.5 MPa | 10.0 MPa | 5.5 MPa |
| Creep Relaxation | ASTM F38 | < 15% | < 10% | < 12% |
| Operating Temperature Range | - | -240°C to +260°C | -240°C to +260°C | -240°C to +260°C |
| Parameter | Standard Options | Custom Availability |
|---|---|---|
| Sheet Thickness | 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm | 0.3mm to 6.0mm |
| Sheet Width | 1500mm, 2000mm | Up to 2500mm |
| Sheet Length | Rolls of 50 meters; Cut sheets per request | Any length on cut sheets |
| Standard Color | White (Natural) | Black, Gray, Blue (and other colors with MOQ) |
The adaptability of Kaxite Sealing's Expanded PTFE Sheet makes it a critical component in numerous sectors. Its ability to seal effectively against gases, liquids, and aggressive chemicals under wide temperature and pressure variations is unmatched.
Q: What is the primary difference between traditional PTFE sheet and Expanded PTFE Sheet?
A: Traditional skived PTFE sheet is a solid, non-porous material cut from a molded billet. Expanded PTFE Sheet is created by stretching PTFE in a controlled process, creating a microporous, fibrous structure. This gives ePTFE significantly higher compressibility, better conformability to uneven surfaces, improved creep resistance, and often higher tensile strength, making it vastly superior for gasketing applications.
Q: Can Kaxite Sealing ePTFE sheets be used for both liquid and gas sealing?
A: Yes, absolutely. The microporous structure of our Expanded PTFE Sheet is not open-celled; the pores are small and tortuous. When compressed in a flange, these pores close, creating an impermeable barrier that effectively seals both liquids and gases, including aggressive chemicals and steam.
Q: How does the thermal and chemical resistance of ePTFE compare to standard PTFE?
A: The expansion process does not alter the fundamental chemical structure of the PTFE polymer. Therefore, Kaxite Sealing's ePTFE sheets retain the full chemical inertness and broad temperature resistance (-240°C to +260°C) of virgin PTFE. It is resistant to almost all industrial chemicals, with exceptions only for molten alkali metals and certain fluorine compounds at high temperature/pressure.
Q: Is a sealant or adhesive required when installing an ePTFE gasket?
A: No. In fact, using adhesives or sealants is generally not recommended as it can fill the porous structure, reducing compressibility and performance. Expanded PTFE Sheet gaskets are designed to be installed dry and clean. Their natural conformability and recovery allow them to seal effectively on their own when proper flange preparation and bolt torque procedures are followed.
Q: What is the significance of creep relaxation, and how does Kaxite's ePTFE perform?
A: Creep relaxation, or cold flow, is the tendency of a material to deform permanently under sustained load, which can lead to a loss of sealing stress and leakage. Standard PTFE is known for high creep. The expanded, fibrous structure of our ePTFE sheets provides exceptional resistance to creep, typically below 15% and as low as 10% for our high-density grades. This ensures the gasket maintains bolt load and seal integrity over long service periods, reducing maintenance.
Q: Can Kaxite ePTFE sheets be customized for specific needs?
A: Yes, customization is a core strength at Kaxite Sealing. We can produce sheets with specific densities for optimized compression, thicknesses outside standard ranges, custom widths and sheet sizes, and in various colors for coding or aesthetic purposes. We can also incorporate additives for enhanced properties, such as corrosion inhibitors for sensitive metals.
Q: How should Expanded PTFE Sheet gaskets be stored and handled?
A: Store rolls or sheets in a cool, dry place away from direct sunlight. Keep them in their original packaging until use to prevent contamination from dust or oils. Handle with clean gloves or hands to prevent transferring skin oils onto the sealing surface. The material is robust but should be protected from sharp edges or abrasion during handling and cutting.
Q: What flange surface finish is recommended for optimal performance with ePTFE gaskets?
A: A flange surface finish between 125 and 500 microinches Ra (3.2 to 12.5 µm Ra) is typically ideal. Excessively rough surfaces may require higher bolt load to achieve conformity, while mirror-finish surfaces may reduce the gasket's ability to grip. The excellent conformability of Kaxite ePTFE allows it to perform well even on slightly damaged or scratched flanges where other materials might fail.
