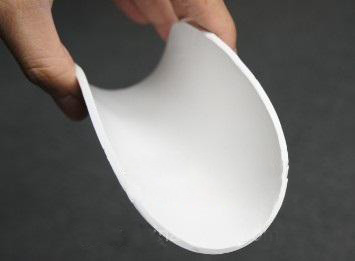

For engineers, plant managers, and procurement specialists navigating the demanding requirements of modern industrial sealing, material selection is paramount. Among the high-performance solutions available, Expanded PTFE Gaskets have emerged as a versatile and reliable standard for countless critical applications. Unlike traditional PTFE, which is sintered from fine powder, expanded PTFE (ePTFE) is created through a unique expansion process that stretches the PTFE into a strong, flexible matrix of microscopic nodes and fibrils. This structure gives ePTFE gaskets a unique set of properties: exceptional compressibility, superior sealability, and outstanding chemical resistance, all while maintaining the inherent non-stick and temperature-resistant qualities of PTFE. At Kaxite Sealing, we leverage decades of material science expertise to manufacture premium expanded PTFE gaskets that deliver uncompromising performance and longevity in the most challenging environments.
Choosing Kaxite Sealing ePTFE gaskets provides a comprehensive solution to common sealing challenges. Our products are engineered to outperform conventional materials.
Understanding the precise specifications of a gasket material is crucial for proper selection and system design. Below are the detailed parameters for Kaxite Sealing's standard expanded PTFE gasket material.
| Property | Test Standard | Typical Value / Range | Significance for Application |
|---|---|---|---|
| Specific Gravity | ASTM D792 | 0.7 - 1.2 g/cm³ | Indicates density; lower values often correlate with higher compressibility and conformability. |
| Tensile Strength | ASTM D638 | 15 - 25 MPa (MD)* | Measures material strength in the machine direction, important for handling and installation integrity. |
| Elongation at Break | ASTM D638 | 100 - 300% | High elongation indicates excellent flexibility and ability to stretch without tearing. |
| Compression Set | ASTM F36 (22 hrs @ 25°C) | 30 - 50% | Lower values are better, indicating the material's ability to recover after compression, crucial for long-term seal retention. |
| Stress Relaxation | ASTM F38 | < 20% | Measures loss of sealing force over time; a low percentage ensures a maintained seal under constant load. |
| Thermal Conductivity | ASTM C518 | ~0.25 W/m·K | Low thermal conductivity provides good insulation properties between flanges. |
| Continuous Service Temperature | - | -240°C to +260°C (-400°F to +500°F) | Defines the operational range where the material maintains its key sealing properties. |
| pH Range | - | 0 - 14 | Confirms suitability across the entire pH spectrum, from strong acids to strong alkalis. |
| Fire Safety Rating | ASTM F202 | Non-flammable, Self-extinguishing | Certifies safety in applications with fire risk requirements. |
*MD = Machine Direction. Properties can be tailored based on specific density and manufacturing process.
Kaxite Sealing provides expanded PTFE gaskets in various forms to suit different assembly needs:
Q: What is the primary difference between expanded PTFE (ePTFE) and filled PTFE gaskets?
A: The core difference lies in the material structure and resulting properties. Filled PTFE is virgin PTFE blended with additives like glass, carbon, or bronze to improve certain characteristics like creep resistance or hardness, but this can sometimes reduce pure chemical resistance. Expanded PTFE is made from 100% virgin PTFE that is mechanically stretched, creating a microporous structure. This gives ePTFE superior conformability, lower sealing stress requirements, and better flexibility without compromising the full chemical inertness of PTFE. For sealing uneven surfaces, ePTFE is generally the superior choice.
Q: Can Kaxite Sealing ePTFE gaskets be used on severely pitted or corroded flanges?
A: Yes, this is one of the key strengths of expanded PTFE. Its soft, fibrous structure allows it to conform and fill into surface imperfections that would cause leaks with harder, more rigid gasket materials. For optimal results on heavily damaged flanges, we often recommend a slightly thicker gauge ePTFE sheet or a laminated tape wrap to ensure adequate material is present to bridge the gaps. However, for safety and long-term reliability, flange repair or replacement is always advised when possible.
Q: What are the recommended torque values for installing your ePTFE gaskets?
A: Installation torque depends on several factors: flange material (soft cast iron vs. hard steel), flange surface finish, gasket thickness, and bolt size. As a general guideline for standard raised face flanges (RF), we recommend a target compressive stress on the gasket face of 10,000 to 15,000 psi. This typically translates to using standard ASME bolt torque values. It is critical to follow a star-pattern tightening sequence and perform multiple passes to achieve even compression. Kaxite Sealing provides detailed, application-specific installation guidelines with all our product shipments.
Q: Are there any chemicals or media that are incompatible with expanded PTFE?
A: Expanded PTFE is resistant to virtually all industrial chemicals, including strong acids, strong bases, solvents, and oxidizing agents. The only known exceptions are molten alkali metals (like sodium or potassium), certain fluorine compounds, and fluorine gas at high temperatures and pressures. For 99% of industrial applications, ePTFE provides unmatched chemical compatibility. If you have a specific, highly aggressive media, our technical team at Kaxite Sealing can review your application to confirm suitability.
Q: How do I select the correct thickness for my application?
A: Thickness selection balances flange condition, pressure, and gap-filling needs. For standard, smooth flanges in standard pressure services, 1.5mm thickness is common. For low-pressure applications or delicate flanges, 0.8mm or 1.0mm may be suitable. For uneven, scratched, or warped flanges, a thicker gasket (2.0mm or 3.0mm) provides more material to conform and fill voids. Higher pressure applications also benefit from optimized thickness to manage creep. Consulting Kaxite Sealing's engineering support is the best way to determine the ideal thickness for your specific operating conditions.
Q: Can Kaxite ePTFE gaskets be used in food, pharmaceutical, or potable water applications?
A: Absolutely. Our expanded PTFE gaskets are manufactured from 100% virgin PTFE resin that complies with relevant FDA regulations (21 CFR 177.1550) and is certified to USP Class VI standards for biocompatibility. They are also compliant with regulations for potable water (such as NSF/ANSI 61 where applicable). They do not leach contaminants, are tasteless and odorless, making them ideal for sanitary processing, biotechnology, and food & beverage industries.
Q: What is the shelf life of an expanded PTFE gasket, and how should I store them?
A: Expanded PTFE has an exceptionally long, virtually indefinite shelf life when stored properly. The material is not susceptible to degradation by moisture, oxidation, or UV light in the same way elastomers are. For best practice, store gaskets in a cool, dry place away from direct sunlight and extreme heat. Keep them in their original packaging until use to prevent contamination with dirt or oil. Avoid placing heavy objects on top of sheet or gasket stacks to prevent permanent deformation.
