PTFE Packing is a cornerstone of modern industrial sealing technology, offering unparalleled performance in the most demanding fluid handling applications. Also known as Teflon® packing (a common brand name for PTFE), this material has revolutionized gasket and sealing solutions due to its exceptional chemical resistance, wide temperature tolerance, and low friction properties. At Kaxite Sealing, we engineer our PTFE packing to meet the rigorous standards of industries ranging from chemical processing and pharmaceuticals to food & beverage and water treatment.
The superiority of PTFE (Polytetrafluoroethylene) lies in its unique polymer structure, which creates an almost completely inert material. It resists attack from nearly all industrial chemicals and solvents, maintains flexibility from cryogenic temperatures up to high heat, and provides a non-stick, low-friction surface that minimizes shaft wear and packing extrusion.
### Key Advantages of Kaxite Sealing PTFE Packing
* **Universal Chemical Resistance:** Inert to virtually all aggressive chemicals, acids, and solvents, making it suitable for highly corrosive services.
* **Extreme Temperature Suitability:** Performs consistently across a broad range from -268°C (-450°F) to +288°C (+550°F), with short-term spikes up to 315°C (600°F).
* **Excellent Anti-Stick Properties:** The non-stick nature prevents bond formation with process media, ensuring easy clean-up and maintenance.
* **Low Friction & High Lubricity:** Reduces breakout and running torque on pump and valve stems, leading to lower energy consumption and less wear on rotating or reciprocating equipment.
* **FDA Compliance & USP Class VI:** Many of our formulations comply with FDA regulations for food contact and USP Class VI for pharmaceutical applications, ensuring safety in sensitive industries.
* **Long Service Life:** Its resistance to aging, weathering, and UV light contributes to a significantly extended operational lifespan compared to traditional packing materials like graphite or aramid.
### In-Depth Product Specifications & Data
Our PTFE packing is not a one-size-fits-all product. Kaxite Sealing offers a range of styles and constructions to match specific application requirements. Below is a detailed breakdown of our core product parameters.
#### Common Styles & Constructions:

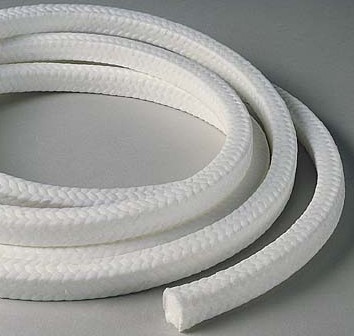

1. **Virgin PTFE Yarn Packing:** Braided from 100% pure, white PTFE fibers. Offers the highest chemical purity and is ideal for severe chemical service and ultra-pure media.
2. **PTFE Impregnated Packing:** A core material (often glass, carbon, or aramid fibers) is braided and thoroughly impregnated with PTFE dispersion. This enhances lubricity and chemical resistance while providing improved structural integrity.
3. **Expanded/Sheet PTFE Packing:** Made from expanded PTFE (ePTFE), a porous, highly flexible tape or cord. Excellent for forming custom gaskets, flange seals, and valve stem packing on-site.
4. **PTFE Composite Packing:** Incorporates lubricants (e.g., graphite, carbon) or reinforcing agents within the PTFE matrix to enhance thermal conductivity, reduce friction further, or increase wear resistance for abrasive services.
#### Technical Parameter Tables:
**Table 1: General Physical & Chemical Properties**
| Property | Typical Value / Description | Test Standard |
| :--- | :--- | :--- |
| **Chemical Resistance** | Excellent resistance to virtually all chemicals except molten alkali metals and certain fluorine compounds at high temp. | N/A |
| **Temperature Range (Continuous)** | -268°C to +288°C (-450°F to +550°F) | ASTM D1710 |
| **pH Range** | 0 to 14 | N/A |
| **Tensile Strength** | 3,000 - 7,000 psi (varies by style) | ASTM D2256 |
| **Density** | 2.1 - 2.3 g/cm³ | ASTM D792 |
| **Coefficient of Friction** | 0.05 - 0.10 (static against steel) | ASTM D1894 |
| **Thermal Conductivity** | 0.25 W/m·K | ASTM C177 |
**Table 2: Kaxite Sealing PTFE Packing Product Line Overview**
| Product Code | Style | Primary Composition | Best For | Color |
| :--- | :--- | :--- | :--- | :--- |
| **KX-PTFE-V** | Braided Yarn | 100% Virgin PTFE Fibers | Aggressive chemicals, ultra-pure systems, food/pharma | White |
| **KX-PTFE-GI** | Impregnated Braid | Glass Fiber Core + PTFE | General chemical service, hot water, steam | White/Grey |
| **KX-PTFE-CG** | Composite Braid | PTFE Fibers + Graphite Fill | High-speed pumps, valves, hot oils & gases | Black |
| **KX-ePTFE-T** | Tape/Cord | 100% Expanded PTFE | Flange gasketing, thread seal, valve stem packing | White |
### PTFE Packing: Frequently Asked Questions (FAQ)
**Q: What is the main difference between PTFE packing and traditional graphite or asbestos packing?**
**A:** The core differences are chemical inertness, temperature range, and safety. PTFE packing is chemically inert to a far wider range of media than graphite or asbestos. It performs well at both cryogenic and high temperatures where graphite may oxidize. Importantly, PTFE is a safe, non-toxic material, unlike asbestos, which is a known health hazard. PTFE also offers lower friction, reducing energy costs.
**Q: How do I select the correct PTFE packing style for my application?**
**A:** Selection depends on key application parameters: the chemical being sealed, operating temperature and pressure, shaft speed (RPM or cycles), and equipment type (pump, valve, mixer). For strong acids/alkalis at high concentrations, use Virgin PTFE (KX-PTFE-V). For general chemical service with some abrasion, PTFE-impregnated (KX-PTFE-GI) is suitable. For high-temperature, high-speed rotating equipment, a graphite-filled composite (KX-PTFE-CG) is recommended for its superior thermal dissipation.
**Q: Can PTFE packing be used in food, pharmaceutical, or potable water applications?**
**A:** Yes, absolutely. Specifically, Kaxite Sealing's Virgin PTFE Yarn Packing (KX-PTFE-V) is manufactured from 100% pure PTFE resin meeting FDA CFR 21 and USP Class VI requirements. It is tasteless, odorless, and will not contaminate the media, making it ideal for food processing, beverage, pharmaceutical manufacturing, and drinking water systems.
**Q: What is the proper installation procedure for PTFE packing rings?**
**A:** Correct installation is critical for performance. Clean the stuffing box and shaft thoroughly. Rings are typically supplied in sets—install them one at a time, staggering the joints by 90 degrees. Use a split installation tool to seat each ring properly, avoiding damage. Tighten the gland follower hand-tight only initially. After startup and thermal cycling, re-tighten gradually until leakage is controlled to a slight drip for lubrication and cooling. Over-tightening causes excessive heat and wear.
**Q: How do I handle leakage control with PTFE packing?**
**A:** PTFE packing requires a slight amount of leakage for lubrication and heat dissipation, unlike mechanical seals which aim for zero leakage. A controlled drip rate of 1-2 drops per minute per inch of shaft diameter is often acceptable. If leakage is excessive, gradual and slight tightening of the gland follower is recommended. Sudden, heavy leakage usually indicates packing failure, improper installation, or excessive shaft wear/play.
**Q: What are the limitations of PTFE packing?**
**A:** While exceptionally versatile, PTFE has limitations. It has relatively low thermal conductivity, so in very high-speed/high-heat applications, heat buildup can be an issue (addressed by graphite-filled composites). It can cold flow under extreme, sustained compressive loads. It is not suitable for applications involving molten alkali metals or fluorine gas at high temperatures. Always consult Kaxite Sealing engineering for critical services.
**Q: Why should I choose Kaxite Sealing for my PTFE packing needs?**
**A:** Kaxite Sealing specializes in high-performance sealing solutions. Our PTFE packing is manufactured under strict quality controls using premium-grade materials. We offer technical support for product selection and installation, ensuring you get the right packing for optimal service life and reliability. Our commitment is to provide sealing solutions that reduce downtime, maintenance costs, and energy consumption for our clients globally.
