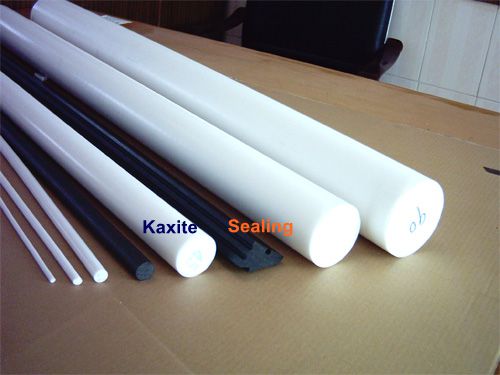

In the demanding world of industrial sealing and high-performance components, material selection is paramount. PTFE Molded Rods stand out as a cornerstone material for engineers and designers facing extreme operational challenges. Kaxite Sealing, with decades of expertise in polymer solutions, manufactures premium-grade PTFE molded rods that deliver unparalleled chemical resistance, exceptional thermal stability, and a remarkably low coefficient of friction. Our rods are precision-engineered from 100% virgin polytetrafluoroethylene resin, ensuring consistent quality, superior mechanical properties, and reliability in the most critical applications across aerospace, chemical processing, semiconductor, pharmaceutical, and food & beverage industries.
Unlike machined rods from sintered billets, our molded rods are manufactured through a specialized isostatic molding process. This advanced technique creates a homogeneous structure with uniform density throughout the cross-section, eliminating voids, cracks, or internal stresses commonly found in alternative production methods. The result is a rod stock offering enhanced dimensional stability, improved tensile and compressive strength, and excellent dielectric properties, ready for precision machining into seals, bearings, piston rings, insulators, and myriad custom components.
Understanding the intrinsic properties of PTFE is crucial for proper application design. Below is a detailed breakdown of the standard specifications and performance characteristics of Kaxite Sealing's PTFE molded rod stock.
| Property | Value / Rating | Test Method / Notes |
|---|---|---|
| Continuous Service Temperature | -200°C to +260°C (-328°F to +500°F) | Short-term peaks up to 300°C possible. |
| Coefficient of Friction | 0.05 - 0.10 | One of the lowest known for solids, static against steel. |
| Chemical Resistance | Excellent | Inert to virtually all industrial chemicals and solvents. Attacked only by molten alkali metals and certain fluorine compounds at high pressure/temperature. |
| Dielectric Strength | >40 kV/mm | ASTM D149. Excellent electrical insulator. |
| Water Absorption | < 0.01% | ASTM D570. Negligible. |
| Flammability | Non-flammable | UL94 V-0 rated. Will not support combustion. |
| FDA Compliance | Yes | Conforms to FDA CFR 21 for food contact applications. |
| PV Limit (Dry Running) | Up to 10,000 psi·fpm | Pressure x Velocity limit for bearing applications. |
While pure PTFE offers outstanding baseline properties, specific applications often demand enhanced characteristics. Kaxite Sealing provides a range of filled and compounded PTFE molded rod formulations to meet these specialized needs.
| Grade | Primary Fillers | Key Enhanced Properties | Typical Applications |
|---|---|---|---|
| Glass-Filled PTFE Rod | Glass Fiber (5%-25%) | Improved creep resistance, wear resistance, stiffness, and dimensional stability. Slightly reduced chemical resistance. | Heavy-duty bushings, thrust washers, gaskets for high-load static applications. |
| Carbon-Filled PTFE Rod | Carbon Graphite (5%-20%) | Superior wear resistance, excellent thermal conductivity, reduced friction, and improved PV limits. Electrically conductive. | Piston rings, compressor rings, dynamic seals, bearings requiring heat dissipation. |
| Bronze-Filled PTFE Rod | Bronze Powder (20%-60%) | Greatly enhanced thermal conductivity, superior compressive strength, excellent wear resistance. | High-load bearing applications, wear plates, backup rings for aggressive environments. |
| Stainless Steel-Filled PTFE Rod | Stainless Steel Powder | High compressive strength, excellent wear resistance, good thermal conductivity, and corrosion resistance. | Chemical pump components, valve seats, applications requiring both corrosion and wear resistance. |
| MoS₂ (Moly)-Filled PTFE Rod | Molybdenum Disulfide | Lower friction coefficient, improved lubricity in dry environments, reduced initial wear. | Seals and bearings in applications where external lubrication is impossible or undesirable. |
| FDA-Compliant White PTFE Rod | FDA-approved pigments/compounds | Maintains purity and chemical inertness while meeting strict food and pharmaceutical contact regulations. | Seals, gaskets, and components in food processing, dairy, beverage, and pharmaceutical equipment. |
Q: What is the main difference between molded PTFE rods and extruded or skived rods?
A: Molded PTFE rods, like those from Kaxite Sealing, are created using isostatic or compression molding of fine powder resin. This process yields a rod with uniform density in all directions, superior dimensional stability, and minimal internal stress. Extruded rods are forced through a die and can have density variations and molecular alignment. Skived rods are shaved from large sintered cylinders and may have inherent stress planes. For critical, high-precision machining and applications requiring isotropic properties, molded rods are often the preferred choice.
Q: Are PTFE molded rods from Kaxite Sealing suitable for outdoor or UV-exposed applications?
A: Pure PTFE has excellent weathering resistance and is not significantly degraded by UV exposure. It will not become brittle or crack from sunlight alone. However, for very long-term outdoor exposure, some surface chalking might occur, which is typically cosmetic and does not affect mechanical integrity. For critical outdoor sealing, consulting with Kaxite Sealing engineers is recommended to confirm suitability.
Q: Can I machine PTFE rods easily?
A: Yes, PTFE is famously easy to machine using standard metalworking tools (lathes, mills, drills). However, its softness and low thermal conductivity require specific techniques: use sharp, high-rake angle tools, provide adequate cooling (compressed air is ideal), avoid clamping with excessive force to prevent deformation, and account for its high thermal expansion coefficient when holding tight tolerances. Kaxite Sealing provides comprehensive machining guidelines upon request.
Q: What are the limitations of PTFE regarding pressure and cold flow (creep)?
A: PTFE is susceptible to cold flow, meaning it will deform under sustained load, especially at elevated temperatures. This is its primary design limitation for sealing applications. Pure PTFE molded rods are not recommended for high-pressure static seals without proper design (e.g., using confined gland designs or anti-extrusion rings). For dynamic applications, the PV (Pressure x Velocity) limit must be observed. Using filled grades from Kaxite Sealing, such as glass or bronze-filled PTFE, significantly improves creep resistance and load-bearing capacity.
Q: How does PTFE perform at cryogenic temperatures?
A: PTFE molded rods excel in cryogenic environments. They retain their flexibility and toughness down to -200°C (-328°F) and even lower. Unlike many materials that become brittle, PTFE maintains excellent sealing and mechanical properties, making Kaxite Sealing's rods ideal for LNG equipment, aerospace, superconducting magnet systems, and laboratory cryostats.
Q: Is PTFE electrically conductive?
A: Pure PTFE is an excellent electrical insulator with a very high dielectric strength and volume resistivity. This makes Kaxite Sealing's pure PTFE molded rods perfect for insulators, spacers, and components in electrical and electronic applications. If conductivity is required, we offer special compounded rods filled with conductive materials like carbon or certain metal powders.
Q: Can Kaxite Sealing provide custom-sized or non-standard PTFE molded rods?
A: Absolutely. While we stock a wide range of standard diameters and lengths, our core strength at Kaxite Sealing lies in customization. We can manufacture molded rods in large diameters (over 300mm/12"), very long lengths, and in custom compounded formulations tailored to specific chemical, thermal, or mechanical requirements. We work directly with clients from the design phase to ensure the material meets exact application needs.
Q: What quality assurance and certifications does Kaxite Sealing offer with its PTFE rods?
A: Kaxite Sealing operates under a stringent quality management system. Our PTFE molded rods are produced from certified virgin resins. We provide material certifications (C of A) with each batch, detailing key physical properties. Our products can be supplied in compliance with various industry standards, including FDA, USP Class VI, NSF, 3-A Dairy, and specific aerospace and military specifications (e.g., AMS, MIL). Traceability is maintained throughout the production process.
Q: How should PTFE rods be stored before machining or use?
A: PTFE is not hygroscopic and has no shelf-life degradation. Store Kaxite Sealing PTFE rods in a clean, dry, and cool environment away from direct heat sources. Protect them from dust, dirt, and mechanical damage. They should be stored horizontally on flat supports to prevent bending or distortion, especially for smaller diameters and long lengths. No special climate control is necessary.
