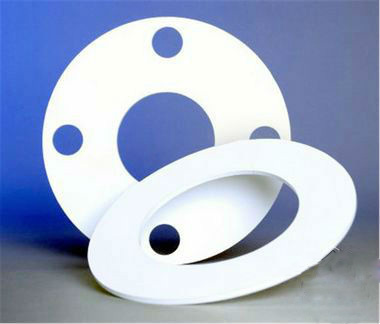

In the demanding world of industrial sealing, where reliability is non-negotiable, Pure PTFE Gaskets stand as the gold standard. For engineers and procurement specialists across chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing, specifying the correct gasket material is critical to ensuring system integrity, safety, and operational efficiency. Pure PTFE, or Polytetrafluoroethylene, offers a unique combination of properties unmatched by most other polymers or composite materials. At Kaxite Sealing, we specialize in manufacturing premium-grade Pure PTFE Gaskets that deliver consistent, long-lasting performance in even the most aggressive environments. This guide delves deep into the specifications, benefits, and applications of our products, providing the technical insight needed for your next project.
Pure PTFE is a fully fluorinated, high-molecular-weight polymer renowned for its exceptional chemical inertness and broad operational temperature range. Unlike filled or modified PTFE compounds, pure PTFE gaskets maintain their integrity across the widest possible spectrum of chemical exposures. The material's legendary non-stick surface minimizes product adhesion and facilitates easy cleanability, which is crucial in sanitary processes. Furthermore, its excellent dielectric properties make it an ideal insulator in electrical applications. When you select a Pure PTFE Gasket from Kaxite Sealing, you are investing in a component designed for maximum resistance and reliability.
Kaxite Sealing's Pure PTFE Gaskets are manufactured from 100% virgin PTFE resin, ensuring consistency and purity. Our manufacturing process controls density and crystallinity to optimize mechanical strength and sealing performance. Below are the key technical parameters that define our product line.
Kaxite Sealing offers Pure PTFE Gaskets in a variety of forms to suit different flange types and assembly requirements.
| Gasket Form | Standard Thickness | Common Size Range (ID x OD) | Primary Applications & Notes |
|---|---|---|---|
| Sheet-Based (Cut/Die-Cut) | 1/64" (0.4mm) to 1/4" (6.35mm) | 1/4" to 120" (customizable) | Flat face flanges, manways, covers. Made from skived or molded sheet. |
| Envelope Gaskets (PTFE Shell with Inner Fill) | 1/8" (3.2mm) to 1/2" (12.7mm) | 1/2" to 48" | Aggressive chemical service. Shell is pure PTFE; filler can be elastomeric or fibrous for enhanced sealability. |
| String / Cord | 1/8" (3.2mm) to 1/2" (12.7mm) diameter | N/A - supplied in spools or cut lengths | Thread sealant, valve packing, form-in-place gaskets for irregular surfaces. |
| Tape | 0.002" to 0.060" thick, various widths | N/A - supplied in rolls | Thread sealing, minor flange repair, wrapping existing gaskets for chemical resistance. |
| Molded Shapes (Rings, V-Rings, U-Cups) | Varies by shape and function | Custom to specification | Pump housings, valve stems, specialized equipment. Offers excellent dimensional stability. |
Q: What is the main advantage of a Pure PTFE Gasket over a filled PTFE gasket?
A: The primary advantage is superior chemical resistance across the entire pH scale. Fillers like glass, graphite, or carbon, used in composite gaskets to improve creep resistance or hardness, can sometimes be vulnerable to specific chemicals. Pure PTFE, with no additives, provides the broadest possible chemical compatibility, making it the safest choice for unknown or mixed chemical streams. It also guarantees no contamination of the process fluid, which is critical in high-purity industries.
Q: How do I handle the cold flow or creep relaxation property of Pure PTFE when installing gaskets?
A: Cold flow (creep) is a characteristic of PTFE where it slowly deforms under sustained pressure. To manage this effectively, use flanges designed for soft gaskets (e.g., raised face, tongue-and-groove). Follow a proper bolting procedure: achieve initial seating stress, then re-torque bolts after a short period (e.g., 24 hours of operation or after the first heat cycle) to compensate for initial relaxation. Kaxite Sealing can also provide design consultation to select the appropriate gasket thickness and style to minimize this effect.
Q: Can Kaxite Sealing Pure PTFE Gaskets be used for high-pressure applications?
A: While virgin PTFE has physical limits, it can be used in moderate pressure applications. For high-pressure systems (>150 psi), we recommend considering alternative forms like Kammprofile gaskets with a PTFE sealing layer or specially designed envelope gaskets with a robust core. The key is to contain the PTFE to prevent extrusion. Consulting with our engineering team is essential for high-pressure, high-temperature (HPHT) applications to ensure a safe and reliable design.
Q: Are your gaskets suitable for oxygen service or other strong oxidizers?
A: Yes, Pure PTFE is generally excellent for oxygen and oxidizer service due to its non-flammable and chemically inert nature. However, for high-pressure oxygen systems, cleanliness is paramount. Any grease, oil, or particulate contamination can pose a ignition risk. Kaxite Sealing can supply gaskets cleaned, bagged, and packaged in a controlled environment specifically for critical oxygen service to meet industry standards like ASTM G93.
Q: How do I select the right thickness for my Pure PTFE Gasket?
A: Thickness selection balances flange condition, pressure, and bolt load. Thinner gaskets (1/16" to 1/8") offer better creep resistance and are good for flat, smooth flanges at lower pressures. Thicker gaskets (1/4" and above) are better for compensating minor flange imperfections or misalignment but require more bolt load to seal and are more prone to creep. For standard raised face flanges, 1/8" thickness is a common starting point. Our technical team can advise based on your specific ASME B16.5 or B16.47 flange details.
Q: Does Kaxite Sealing offer custom shapes and sizes?
A: Absolutely. Custom fabrication is a core strength at Kaxite Sealing. We can produce Pure PTFE Gaskets in virtually any size or complex shape from large-diameter tank flanges to intricate multi-port designs. We work from customer-supplied drawings, CAD files, or even physical samples. Our capabilities include precision CNC machining, die-cutting, and skiving from large blocks or sheets to meet exact dimensional tolerances.
The versatility of Kaxite Sealing Pure PTFE Gaskets makes them indispensable in numerous sectors. In Chemical Processing, they seal reactors, piping, and storage tanks handling corrosive acids (sulfuric, hydrochloric) and caustics. The Pharmaceutical and Bio-tech industries rely on their purity and cleanability for fermenters, chromatography columns, and CIP/SIP systems. Food & Beverage plants use them in processing lines for their FDA compliance and non-contaminating properties. In Semiconductor Manufacturing, they are critical in wet benches and gas delivery systems where ultra-high purity is required. Additionally, they serve in Electrical applications as insulating bushings and in Industrial Machinery for general corrosive service.
To ensure the longevity and leak-tight integrity of your Pure PTFE Gasket, proper installation is crucial. Always start with inspecting the flange faces for scratches, grooves, or warpage; they should be clean, dry, and smooth. Ensure the gasket is the correct size and type for the flange. Align the gasket carefully without stretching. Use a calibrated torque wrench and follow a cross-pattern bolting sequence to apply the recommended bolt load evenly. As mentioned in the FAQ, a re-torque after the initial heat cycle or operation period is highly recommended to compensate for the initial creep of the PTFE material. Following these steps, along with the specific guidelines provided by Kaxite Sealing, will maximize gasket service life.
Choosing Kaxite Sealing means more than just purchasing a gasket; it means gaining a technical partner. Our expertise, grounded in decades of experience, allows us to provide not only top-tier products but also actionable guidance for application engineering, installation, and maintenance. We are committed to delivering sealing solutions that enhance the safety, efficiency, and reliability of your operations. Contact our engineering support team today to discuss your specific requirements for Pure PTFE Gaskets and discover the Kaxite Sealing difference.
