In the world of advanced industrial sealing and filtration, few materials offer the unique combination of properties found in Expanded PTFE (ePTFE). As a leader in high-performance sealing technology, Kaxite Sealing has dedicated decades to mastering the production and application of this remarkable polymer. Unlike standard PTFE, which is sintered into a solid form, Expanded PTFE is created through a proprietary expansion process that stretches the PTFE microstructure, creating a matrix of fine nodes and fibrils. This transformation unlocks a suite of exceptional characteristics—including high porosity, extreme flexibility, excellent chemical resistance, and superior sealing force—making it indispensable for demanding applications across aerospace, pharmaceuticals, chemical processing, food and beverage, and semiconductor manufacturing.
At its core, Kaxite Sealing's ePTFE is a 100% PTFE material that contains no fillers or additives. The expansion process aligns the polymer's molecules, significantly enhancing its mechanical properties while retaining the innate benefits of virgin PTFE. The result is a versatile, multi-functional material available in sheets, tapes, cords, filaments, and custom-molded forms, engineered to solve complex sealing, gasketing, and filtration challenges where other materials fall short.
Kaxite Sealing's Expanded PTFE products are manufactured to precise standards, ensuring consistent performance and reliability. The following parameters define our material's capabilities. It is crucial to select the correct density, thickness, and form based on the specific requirements of pressure, temperature, media, and flange type in your application.
| Product Form | Standard Thickness | Standard Density | Standard Width / Diameter | Primary Applications |
|---|---|---|---|---|

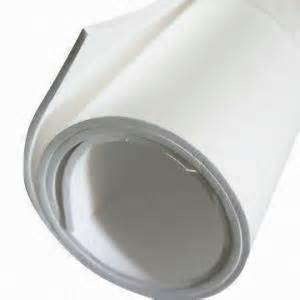

| ePTFE Sheet | 0.5mm - 6.0mm | 0.4 - 0.8 g/cm³ | Up to 1500mm wide | Gaskets, diaphragm seals, flange liners |
| ePTFE Tape (Skived) | 0.1mm - 1.0mm | 0.6 - 0.8 g/cm³ | 12mm, 25mm, 50mm, 100mm | Thread sealant, pipe wrapping, wound gaskets |
| ePTFE Cord (Ungasketed) | N/A | 0.4 - 0.6 g/cm³ | 3mm, 5mm, 8mm, 10mm | Pump packing, valve stem packing, in-situ gasket formation |
| ePTFE Filament / Fiber | N/A | N/A | 100 - 3000 Denier | Filtration media, composites, braided packing |
| Impregnated ePTFE Sheet | 1.0mm - 5.0mm | 1.2 - 1.8 g/cm³ | Up to 1000mm wide | High-stress bolted flange connections in aggressive media |
* Note: All specifications from Kaxite Sealing are customizable. The density directly affects sealing pressure capability and compressibility. Lower density (0.4-0.5 g/cm³) offers higher compressibility for irregular surfaces, while higher density (0.7-0.8 g/cm³) provides greater strength for high-pressure systems.
Q: What is the main difference between Expanded PTFE (ePTFE) and traditional PTFE?
A: The fundamental difference lies in the microstructure. Traditional, skived PTFE is a solid, non-porous material. Expanded PTFE, such as that produced by Kaxite Sealing, undergoes a controlled expansion process that creates a microporous structure of nodes interconnected by fibrils. This gives ePTFE dramatically improved flexibility, conformability, tensile strength, and compressibility while maintaining the full chemical and thermal resistance of PTFE. It is softer, more pliable, and can seal with lower bolt loads.
Q: Can Kaxite Sealing's ePTFE be used for both static and dynamic sealing applications?
A: Yes, but selection is critical. Our lower-density ePTFE cords and tapes are excellent for dynamic applications like valve stem packing and pump packing, where their flexibility and recovery provide lasting seal integrity with minimal friction. For static sealing, such as flange gaskets, our ePTFE sheets (often in medium to higher densities) or impregnated sheets are preferred. They distribute sealing stress evenly, conform to surface imperfections, and resist creep relaxation under constant load.
Q: How does the density of ePTFE affect its performance as a gasket?
A: Density is a primary performance driver. Low-density ePTFE (0.4-0.5 g/cm³) is highly compressible and is ideal for sealing uneven, warped, or low-pressure flange faces. It fills surface grooves effectively. Medium-density (0.6-0.7 g/cm³) offers a balance of conformability and load-bearing capacity for most standard flange applications. High-density or impregnated ePTFE (1.2 g/cm³ and above) is designed for high-pressure, high-stress applications, offering minimal creep, high bolt load retention, and superior blow-out resistance.
Q: Is ePTFE safe for use in food, pharmaceutical, and ultra-pure water systems?
A: Absolutely. Kaxite Sealing's virgin ePTFE is manufactured in a cleanroom environment and is inherently pure. It meets FDA CFR 21.177.1550 for food contact, is certified USP Class VI for biocompatibility, and is extensively used in WFI (Water for Injection) and high-purity chemical systems. Its non-toxic, non-leaching, and non-contaminating properties make it the material of choice for sanitary and critical process applications.
Q: What are the limitations of ePTFE? Are there chemicals or conditions it cannot handle?
A: While ePTFE shares PTFE's nearly universal chemical inertness, its porous structure can, in some cases, allow permeation of certain aggressive media in gaseous form under specific conditions of temperature and pressure, which solid PTFE might better block. Additionally, while it has excellent thermal stability, continuous service at the upper end of its temperature range (above 260°C/500°F) may accelerate stress relaxation in tightly bolted flanges. For applications involving molten alkali metals or certain fluorine compounds at high temperature, a specialist consultation with Kaxite Sealing engineers is recommended.
Q: How do I install and torque an ePTFE gasket correctly?
A: Proper installation is key to performance. First, ensure flange faces are clean, aligned, and undamaged. Place the Kaxite Sealing ePTFE gasket centered on the flange. For sheet gaskets, no adhesive is needed. Follow a cross-pattern bolting sequence (star pattern). Tighten bolts in multiple stages—typically to 30%, then 60%, and finally 100% of the recommended torque value. The recommended seating stress for standard ePTFE gaskets is generally between 4,000 and 7,000 psi. Always refer to the specific technical data sheet provided by Kaxite Sealing for the product you are using, as torque values depend on gasket density, size, and flange rating.
