In the demanding world of industrial sealing, selecting the right gasket material is not just a choice—it's a critical decision impacting safety, efficiency, and operational longevity. Among the plethora of materials available, PTFE Gaskets stand out as a premier solution for the most challenging applications. Engineered from Polytetrafluoroethylene, a high-performance fluoropolymer, these gaskets offer an unparalleled combination of chemical resistance, thermal stability, and reliability. For over two decades, Kaxite Sealing has been at the forefront of this technology, refining and perfecting PTFE gasket solutions for a global clientele. This guide delves deep into the specifications, benefits, and applications of our industry-leading products.
The superiority of PTFE as a gasket material stems from its unique molecular structure. It delivers performance parameters that are often unattainable with traditional materials like rubber, graphite, or compressed non-asbestos fibers.
Kaxite Sealing manufactures a diverse portfolio of PTFE gasket products, each designed to meet specific pressure, temperature, and flange requirements. Below is a detailed breakdown of our standard offerings.

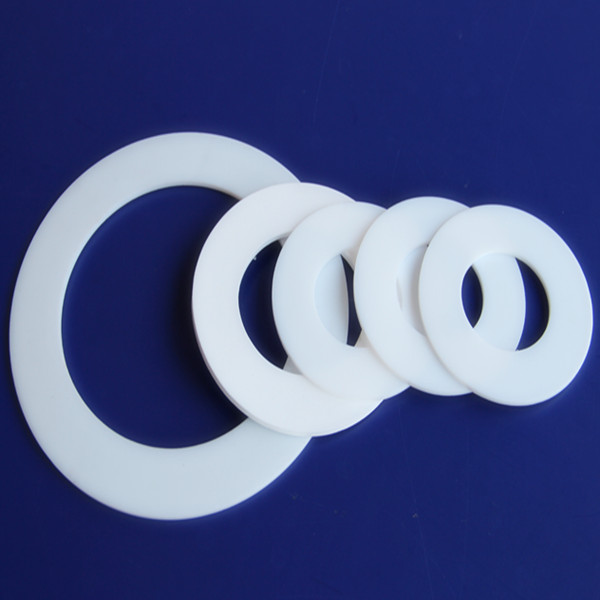

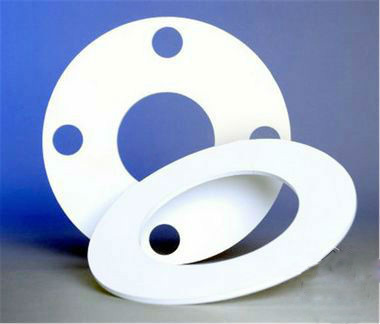

These are precision die-cut or CNC machined from 100% virgin PTFE sheets. They are the go-to choice for general chemical service and corrosive applications.
| Parameter | Specification | Details |
|---|---|---|
| Material Standard | ASTM D4894, D4895 | Manufactured from pure, uncompounded PTFE resin. |
| Specific Gravity | 2.15 - 2.20 g/cm³ | Indicative of high material purity. |
| Temperature Range | -268°C to +260°C | Continuous service range. |
| Pressure Rating | Up to 150 psi (10 bar) | For standard soft gasket designs. |
| Thickness Range | 0.5mm (1/64") to 12.7mm (1/2") | Standard stock sizes; custom available. |
| Sheet Size | 1m x 1m, 1.2m x 1.2m, 1.5m x 1.5m | Common sheet dimensions for fabrication. |
| Color | White (Opaque) | Standard virgin PTFE color. |

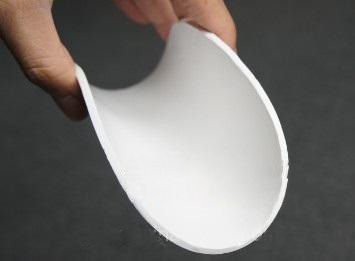

Kaxite Sealing's ePTFE gaskets are manufactured from expanded PTFE, a microporous structure offering superior compressibility, conformability, and sealing performance at lower bolt loads.
| Parameter | Specification | Details |
|---|---|---|
| Material Form | Expanded PTFE Tape / Sheet | Highly fibrillated, soft, and formable. |
| Density | 0.5 - 1.2 g/cm³ (variable) | Lower density allows for high compression. |
| Temperature Range | -240°C to +315°C | Broad range suitable for thermal cycling. |
| Pressure Rating | Up to 3000 psi (207 bar) | Ideal for high-pressure flange connections. |
| Chemical Resistance | Equal to Virgin PTFE | Retains full chemical inertness. |
| Creep Relaxation | Excellent (Low) | Minimal cold flow compared to solid PTFE. |
| Common Forms | Tape (spool-wound), Sheet, Pre-cut Gaskets | Versatile for field or shop fabrication. |
To enhance specific mechanical properties for demanding applications, Kaxite Sealing offers compounded PTFE with various fillers.
| Filler Type | Key Enhanced Properties | Typical Applications |
|---|---|---|
| Glass Fiber | Improved compressive strength, reduced creep, better wear resistance. | Valve seats, heavy-duty flanges, pump housings. |
| Carbon / Graphite | Enhanced thermal conductivity, improved wear resistance, reduced deformation under load. | Heat exchangers, hot oil systems, compressors. |
| Bronze | Greatly improved thermal conductivity, high mechanical strength, excellent wear properties. | Bearings, bushings, high-load dynamic seals. |
| Stainless Steel | Maximum compressive strength, excellent creep resistance, high PV limits. | Extreme pressure flange connections, aggressive chemical service with mechanical stress. |
| Molybdenum Disulfide (MoS2) | Lower coefficient of friction, improved lubricity, enhanced extrusion resistance. | Rotary seals, pneumatic systems, anti-galling applications. |
These combine a soft PTFE envelope (encapsulation) with a resilient core material (like EPDM, NBR, or a compressed fiber sheet).
Choosing the correct PTFE gasket from Kaxite Sealing involves evaluating several application-specific factors:
Q: What is the main difference between Virgin PTFE and Expanded PTFE (ePTFE) gaskets?
A: Virgin PTFE is a solid, sintered polymer with excellent chemical resistance but is prone to cold flow (creep) under sustained pressure. Expanded PTFE is a softer, microporous material created by expanding PTFE, resulting in significantly higher compressibility, better sealing at lower bolt loads, and vastly improved creep resistance. ePTFE is often the preferred choice for sealing standard pipe flanges.
Q: Can Kaxite Sealing PTFE gaskets be used for high-pressure applications?
A: Yes, but selection is crucial. Virgin soft PTFE gaskets are generally limited to moderate pressures (typically below 150 psi). For high-pressure applications, we recommend our filled PTFE grades (e.g., glass or stainless steel filled) or, more commonly, our high-density ePTFE gaskets, which can handle pressures exceeding 3000 psi when properly designed and installed.
Q: Are PTFE gaskets reusable?
A: Generally, PTFE gaskets, especially soft cut gaskets, are not designed to be reused. Once compressed during installation, they take a permanent set. Reusing them can lead to leakage. However, certain thick-sectioned filled PTFE gaskets or specially designed envelope gaskets may tolerate disassembly and reassembly if handled carefully. We always recommend using a new gasket for critical sealing integrity.
Q: How do I prevent cold flow or creep in PTFE gaskets?
A: Cold flow is the deformation of PTFE under continuous load. To mitigate it: 1) Use a filled PTFE compound (glass, carbon, bronze) from Kaxite Sealing, which dramatically reduces creep. 2) Use ePTFE, which has inherently better creep resistance than solid PTFE. 3) Ensure the gasket is not over-torqued and that the flange design provides adequate containment (e.g., raised faces, grooves) to limit radial flow.
Q: Are your PTFE gaskets suitable for food, beverage, or pharmaceutical applications?
A: Absolutely. Kaxite Sealing's Virgin PTFE grades are manufactured from FDA-compliant resins (meeting FDA CFR 21.177.1550) and are ideal for sanitary applications. They are non-toxic, non-contaminating, and can withstand CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes. We also offer USP Class VI certified materials upon request.
Q: What is the lead time for custom-shaped PTFE gaskets?
A: At Kaxite Sealing, our standard lead time for custom die-cut or CNC-machined gaskets from stock sheet material is 5-7 business days. For complex designs, large quantities, or gaskets requiring molding or sintering of special compounds, lead times may extend to 2-4 weeks. We provide firm timelines upon receipt of your detailed specifications or drawings.
Q: Can you supply PTFE gaskets with special features like alignment tabs or injection ports?
A: Yes, our advanced CNC machining and molding capabilities allow us to manufacture PTFE gaskets with integrated features such as alignment ears, pressure tap ports, steam tracing channels, or multi-layer constructions. Submit your engineering drawings for a prompt review and quotation.
Q: How should PTFE gaskets be stored before use?
A: Store Kaxite Sealing gaskets in a cool, dry place away from direct sunlight and heat sources. They should be kept in their original packaging until ready for use to prevent contamination, dust, or mechanical damage. PTFE is not affected by long-term storage under these conditions.
